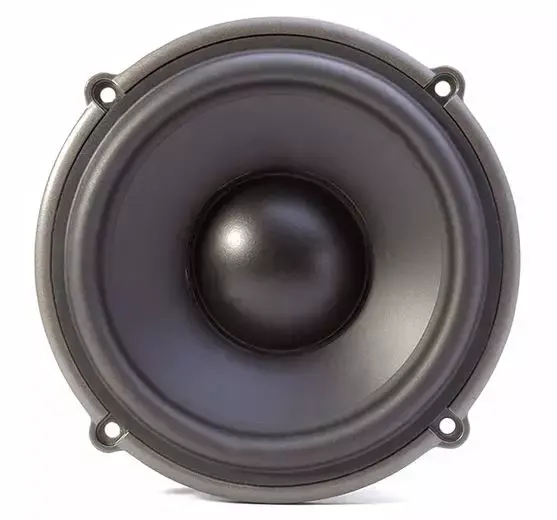

Designed as a dedicated midrange driver for application in door panel or dashboard installations, the GB40 is optimized for an infinite baffle application or an enclosure of at least 1 liter. The GB40’s 41 mm mounting depth makes it an easy fit in locations that require a shallow midrange. Like all the GB Series midrange speakers, the GB40 includes a grille and installation kit that can be customized to blend with or highlight nearly any installation.

 Features:

Treated Paper Cone

1" (25 mm) Voice Coil on Fiberglass Former

Milled Flat Single-Layer CCAL Voice Coil

Copper Inductance- and Distortion-Reducing Pole Piece Cap

Neodymium Motor with Bucking Magnet

Flat, Progressive Nomex® Spider

Nitrile Butadiene Rubber Surround

Proprietary Vented Cast Aluminum Basket

Chrome-Plated Cast Zinc Motor Housing

Screw Terminals

All-Metal Grille and Mounting Kits Included

Hex Screws and Tools Included

Removable and Paintable Grille

Rub-On Grille Logos Included for Custom Installation


Specs:

Nominal Impedance: 4 Ohm

RMS Power Handling: 100 W (with recommended crossover)

Peak Power Handling: 300 W (with recommended crossover)

Frequency Response (-3 dB): 80 Hz - 12 kHz

Sensitivity (2.83 V/1 M): 87 dB

Recommended Amplifier RMS Power Range: 20 W - 100 W

Recommended High Pass Filter Frequency and Slope: = 110 Hz, = 12 dB/oct

Recommended Low Pass Filter Frequency and Slope: = 6 kHz, = 12 dB/oct
